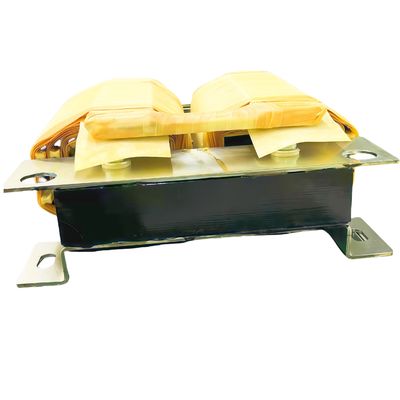

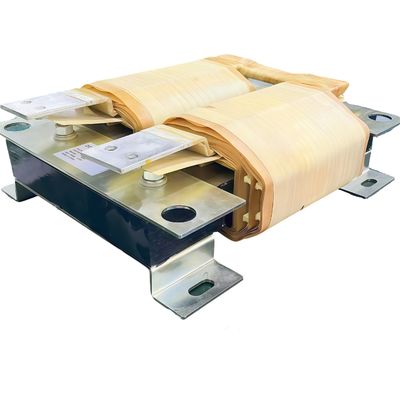

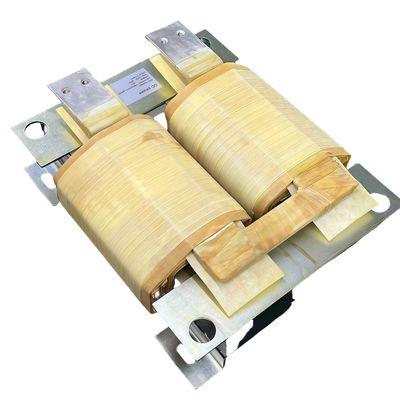

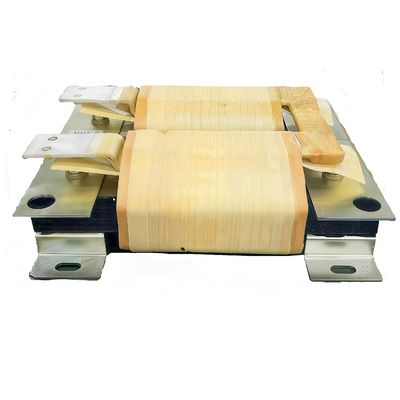

Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications
  • name
  • name
  • name
  • name

Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications

Brand Name: ZXY
Model Number: ZXY
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Huizhou.China
Certification:
RoHS、ISO9001、CE
Inductance:
140uH/254uH/480uH
Voltage:
690V
Keyword:
DC Reactor
Feature:
Low DC Resistance
Application Scenarios:
Power Circuit
Key Parameters For Selection:
Inductance Value/rated Current/DCR/temperature Characteristics
Highlight:

140uH/254uH/480uH DC Choke

,

690V DC Reactor

,

Low DC Resistance Aluminum DC Choke

Product Description
Aluminum DC Choke 140uH/254uH/480uH 690V Capacitor Variable Speed Drive DC Reactor
Product Overview
This custom DC choke/reactor offers versatile inductance options (140μH, 254μH, 480μH) for high-voltage applications up to 690V, designed to smooth DC current, reduce ripple, and protect power electronics in industrial drives, renewable energy systems, and HVDC applications.
Key Features and Functions
  • Suppress high-frequency noise with low-pass filtering characteristics
  • Maintain DC stability by preventing sudden current changes
  • Low DC resistance (DCR) for high efficiency and minimal power loss
  • High saturation current capability with anti-magnetic saturation design
  • Effective ripple reduction in switch mode power supplies
  • Compatible with capacitors to form LC filters for enhanced smoothing
Technical Specifications
Inductance Range140uH / 254uH / 480uH (customizable)
Rated Voltage690V DC
Current CapacityHigh current handling (customizable based on application)
Core MaterialHigh-grade laminated silicon steel or powder core
Insulation ClassClass H (180°C) or higher
Cooling MethodNatural convection / Forced air cooling (optional)
Ripple ReductionExcellent attenuation of DC bus harmonics & noise
Temperature RiseOptimized design for minimal temperature rise under full load
ProtectionOvercurrent & thermal overload resistance
MountingBolt-on or chassis mounting
Standards ComplianceCE, RoHS, IEC 61558 (or customizable)
ApplicationsIndustrial VFDs, renewable energy systems, HVDC, UPS, and motor drives
Application Scenarios
  • Power circuits: Switching power supply input/output filtering, DC-DC converters
  • Motor drives: Noise suppression from motor commutation
  • Renewable energy systems: DC bus filtering for photovoltaic inverters and EV charging stations
  • Industrial equipment: EMI suppression for welding machines and frequency converters
Product Images
Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 0 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 1 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 2 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 3 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 4 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 5 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 6 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 7 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 8
Manufacturing Capabilities
Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 9 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 10 Aluminum DC Choke Reactor with 140uH/254uH/480uH Inductance and 690V Voltage for Low DC Resistance Applications 11
