KCT-0.66-16mm 100A/25m Open Close Current Transformer Clip Structural Lightweight

Brand Name:	ZXY
Model Number:	KCT-0.66-16mm 100A/25mA
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

Usage:

Electrical Fire Monitoring

Ambient Temperature:

0~40℃

Efficiency:

≥ 98%

Keywords:

Clip Structural Current Transformer

Impedance Voltage:

≤ 4.5%

Temperature Rise:

≤ 80K

Supply Ability:

1000K-pcs/month

Highlight:

Lightweight Current Transformer

Clip Structural Current Transformer

Product Description

KCT-0.66-16mm 100A/25m Open Close Current Transformer Clip Structural Lightweight

1.Product Description

Place of Origin	Guangdong, China
Brand Name	ZXY
Model Number	KCT-0.66-16mm 100A/25mA
Input Voltage	220V, 110V, 240V, Other
onput Voltageto	12V, 240V, 36V, 200V, 24V, Other
Customized	Yes
Product name	KCT-0.66-10/16/24/35/48
Theory	Current Sensor
Material	Ferrite Core, Copper Wire and Plastic Shell

1.The open type current transformer measurement conversion analysis signal acquisition and microcomputer protection

The open-close current transformer is improved on the basis of the traditional transformer. Made of free open type, can be installed and dismounted quickly in the state of no power failure and continuous line, easy operation This series of products has a wide measuring range, rated primary current range :0-20DDA, rated secondary current range :0-5A/0-1000mA/D.333V, etc., the current ratio range can reach 500:1-10000:1, Orderly production process to ensure its accuracy level, reliability and other technical requirements, this product meets GB/T20840.1.2 standard.

2. Features:

Buckle structure, good linearity, high sensitivity
High permeability silicon steel, good linearity, high sensitivity
Internal epoxy casting, good stability, light weight, easy to install

3.Application:

It is suitable for the transformation of rural power grid, electrical fire monitoring, fire leakage system, intelligent electricity purchasing system, electricity measurement, electric ship west analysis and electrical equipment signal acquisition, lighting equipment, motor. Power demand side management of power equipment such as small current grounding system, electromagnetic relay protection, microcomputer protection, smart power, environmental monitoring, etc.

2.Characteristics:

Main parameter
Electrical parameter		Mechanical parameter
Operating frequency	shell50-2KHz	shell	ABS, flame retardant class 94-VO
Rated input	0-2000A	skeleton	PBT
Measuring model	10%In-110%In	Iron core	silicon iron
Rated output	0.333V/1Aor5A	Internal structure	clip
Ratio difference	≤+ 0.1%	Construction scheme	Cable Tie Holder
Phase difference	≤10points	Operating temperature	‘-25°C-+65°C
Dielectric strength	2.5KV/1 mA/1 min	Ambient temperature	≤85%
Insulation resistance	DC500V/1000MQ/min	Connection mode	PVC tricolor 1.5m twisted pair wire

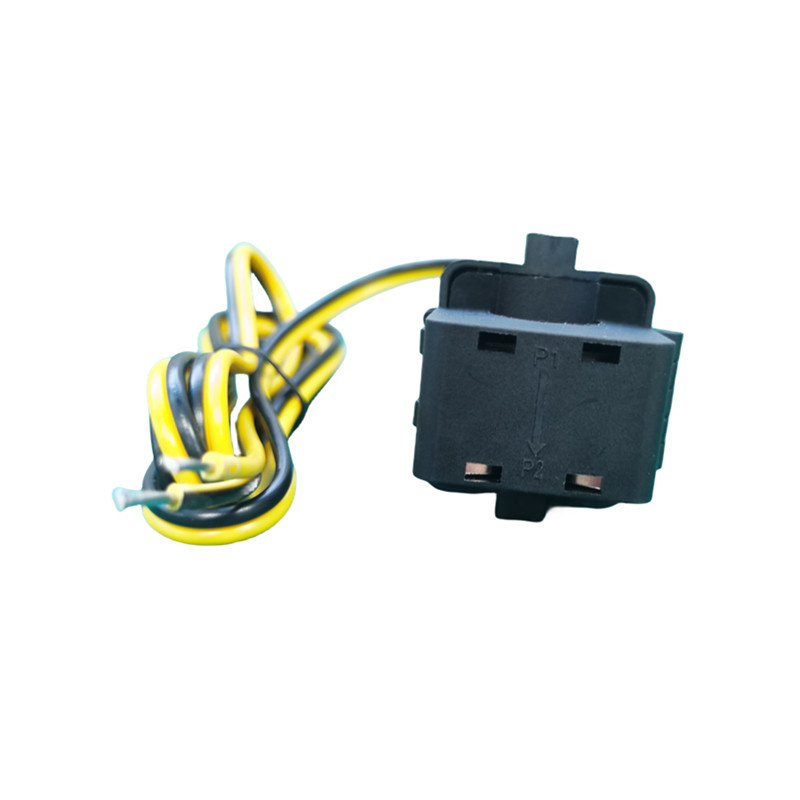

KCT-0.66-16mm 100A/25m Open Close Current Transformer Clip Structural Lightweight 0

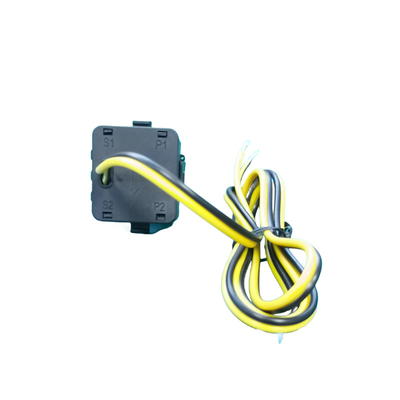

KCT-0.66-16mm 100A/25m Open Close Current Transformer Clip Structural Lightweight 1

Tags:

Products Details

Home > Products >

Current Transformer

KCT-0.66-16mm 100A/25m Open Close Current Transformer Clip Structural Lightweight

All Category

KCT-0.66-16mm 100A/25m Open Close Current Transformer Clip Structural Lightweight

Brand Name:	ZXY
Model Number:	KCT-0.66-16mm 100A/25mA
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Brand Name:

ZXY

Certification:

RoHS,ISO9001-2001

Model Number:

KCT-0.66-16mm 100A/25mA

Usage:

Electrical Fire Monitoring

Ambient Temperature:

0~40℃

Efficiency:

≥ 98%

Keywords:

Clip Structural Current Transformer

Impedance Voltage:

≤ 4.5%

Temperature Rise:

≤ 80K

Minimum Order Quantity:

Negotiable

Price:

Negotiable

Packaging Details:

1000pieces / Carton

Delivery Time:

stock Or 3 weeks

Payment Terms:

T/T paypal xtransfer

Supply Ability:

1000K-pcs/month

Highlight:

Lightweight Current Transformer

Clip Structural Current Transformer

Product Description

KCT-0.66-16mm 100A/25m Open Close Current Transformer Clip Structural Lightweight

1.Product Description

Place of Origin	Guangdong, China
Brand Name	ZXY
Model Number	KCT-0.66-16mm 100A/25mA
Input Voltage	220V, 110V, 240V, Other
onput Voltageto	12V, 240V, 36V, 200V, 24V, Other
Customized	Yes
Product name	KCT-0.66-10/16/24/35/48
Theory	Current Sensor
Material	Ferrite Core, Copper Wire and Plastic Shell

1.The open type current transformer measurement conversion analysis signal acquisition and microcomputer protection

The open-close current transformer is improved on the basis of the traditional transformer. Made of free open type, can be installed and dismounted quickly in the state of no power failure and continuous line, easy operation This series of products has a wide measuring range, rated primary current range :0-20DDA, rated secondary current range :0-5A/0-1000mA/D.333V, etc., the current ratio range can reach 500:1-10000:1, Orderly production process to ensure its accuracy level, reliability and other technical requirements, this product meets GB/T20840.1.2 standard.

2. Features:

Buckle structure, good linearity, high sensitivity
High permeability silicon steel, good linearity, high sensitivity
Internal epoxy casting, good stability, light weight, easy to install

3.Application:

It is suitable for the transformation of rural power grid, electrical fire monitoring, fire leakage system, intelligent electricity purchasing system, electricity measurement, electric ship west analysis and electrical equipment signal acquisition, lighting equipment, motor. Power demand side management of power equipment such as small current grounding system, electromagnetic relay protection, microcomputer protection, smart power, environmental monitoring, etc.

2.Characteristics:

Main parameter
Electrical parameter		Mechanical parameter
Operating frequency	shell50-2KHz	shell	ABS, flame retardant class 94-VO
Rated input	0-2000A	skeleton	PBT
Measuring model	10%In-110%In	Iron core	silicon iron
Rated output	0.333V/1Aor5A	Internal structure	clip
Ratio difference	≤+ 0.1%	Construction scheme	Cable Tie Holder
Phase difference	≤10points	Operating temperature	‘-25°C-+65°C
Dielectric strength	2.5KV/1 mA/1 min	Ambient temperature	≤85%
Insulation resistance	DC500V/1000MQ/min	Connection mode	PVC tricolor 1.5m twisted pair wire

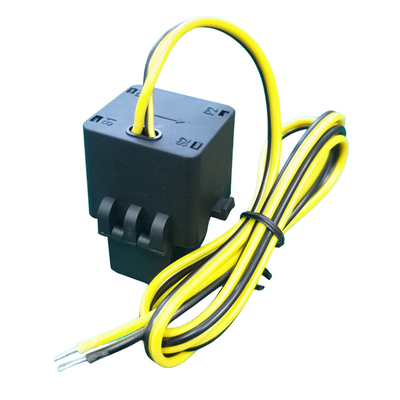

KCT-0.66-16mm 100A/25m Open Close Current Transformer Clip Structural Lightweight 0

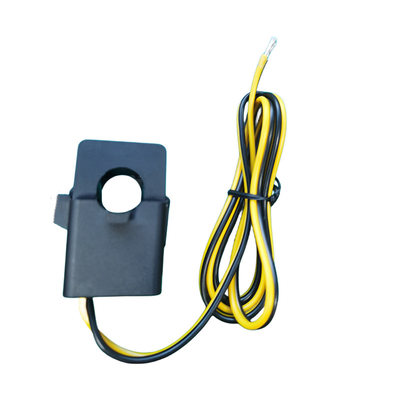

KCT-0.66-16mm 100A/25m Open Close Current Transformer Clip Structural Lightweight 1
