EE28 High Frequency Switching Transformer with Ferrite Core, Customized Turns Ratio, Low Power Loss, and High Working Efficiency

All Category

EE28 High Frequency Switching Transformer with Ferrite Core, Customized Turns Ratio, Low Power Loss, and High Working Efficiency

Brand Name:	ZXY
Model Number:	EE28 Vertical straight plug
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001,CE

Type:

EE28 Vertical Straight Plug

Material:

Magnetic Core/Bakelite Frame/enamelled Copper Wire

Electricity:

Power High-frequency Transformer

Transformer Parameters:

Customized

Transformer Package:

Ferrite Core Transformer

Supply Ability:

1000K-pcs/month

Highlight:

Power High Frequency Transformer

ferrite core transformer ISO

High Frequency Transformer EE28

Product Description

EE28 High Frequency Power Transformer Ferrite Core Switching Transformer

Product Overview

This EE28 high frequency switching transformer utilizes high-quality ferrite core and pure copper wire construction. Engineered for optimal performance, it features low power loss, minimal heat generation, and high working efficiency. With stable performance and excellent anti-interference capabilities, this transformer operates reliably at high frequencies.

The compact size design saves valuable installation space while supporting high voltage insulation requirements. Suitable for long-term continuous operation in both normal and complex environments. Custom turns ratio, output voltage, and pin layout configurations are available to meet specific customer requirements.

Application Scenarios

Power Supply Devices: AC-DC power supply, DC-DC converter, power adapter, isolated power module
LED Lighting: LED driver power, indoor and outdoor lighting power supply, smart lamp power system
Consumer Electronics: Charger, router, smart home devices, small household appliances
Industrial Equipment: Instrument power supply, control board power, industrial mini power unit
Security & New Energy: Monitoring camera power, access control power, small photovoltaic power equipment
Communication Devices: Network equipment power supply, intercom system power module

Technical Specifications

Item	Specification
Product Model	EE28 High Frequency Transformer
Core Material	Mn-Zn Ferrite Core (PC40)
Wire Material	Pure Copper Enameled Wire
Working Frequency	20kHz - 500kHz
Power Range	10W - 80W (Customizable)
Input Voltage	AC 100-240V
Output Voltage	3V - 48V (Customizable)
Efficiency	≥95%
Withstand Voltage	3000V AC / 1min
Insulation Resistance	≥100MΩ
Working Temperature	-20℃ ~ +125℃
Pin Type	5+4PIN / 6+6PIN (Customizable)
Features	Low loss, low heat, stable output, high safety
Custom Service	Voltage, power, turns ratio, pins support customization

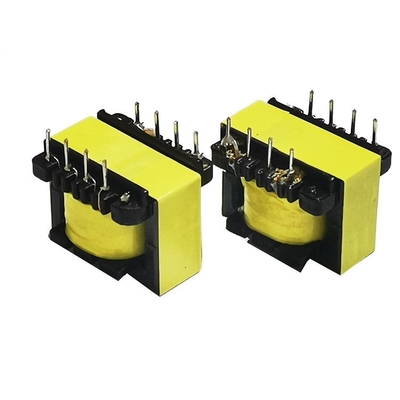

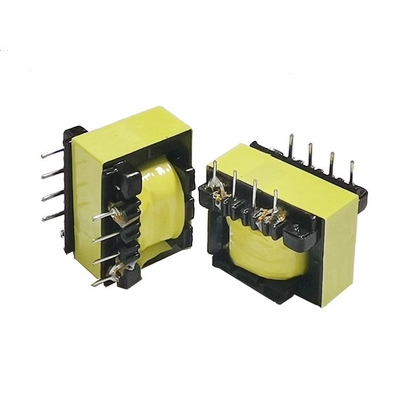

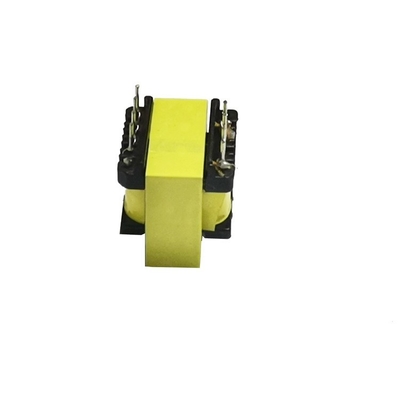

Product Images

Manufacturing Excellence
