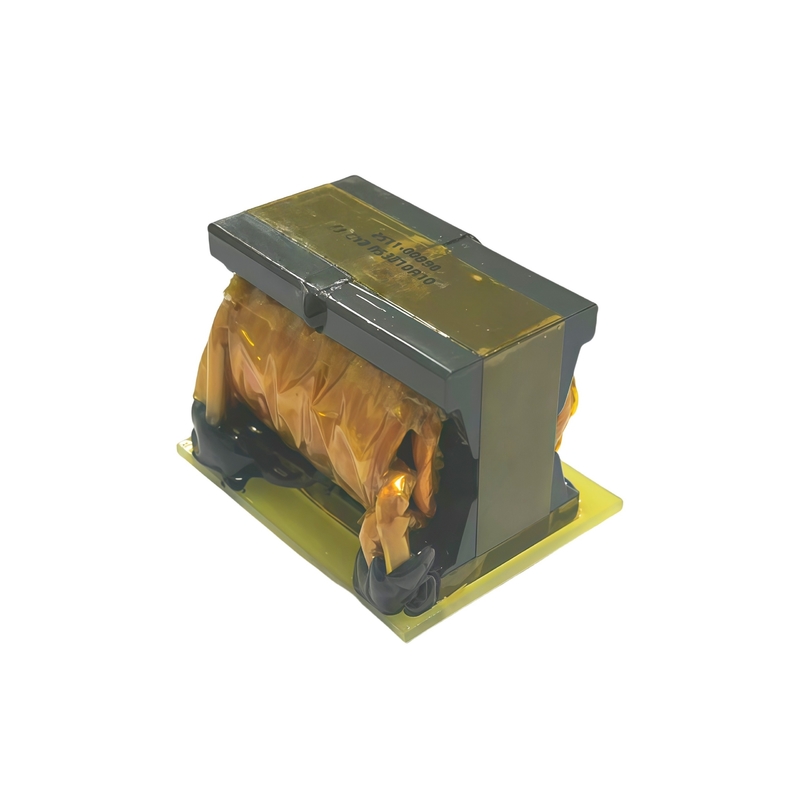

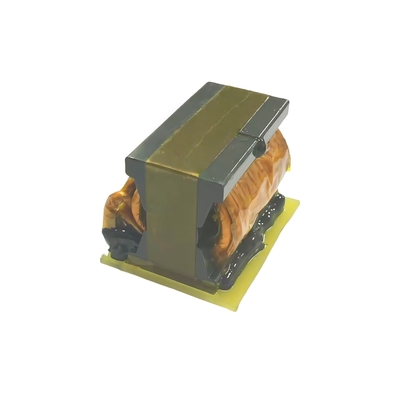

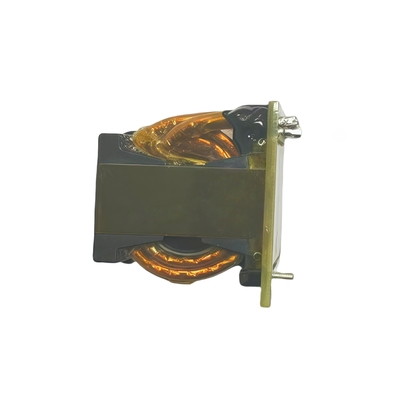

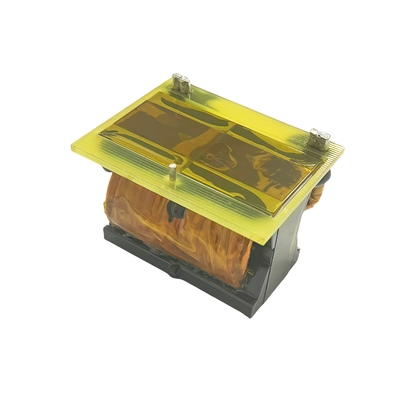

Low-loss New Energy Flyback Transformer High Frequency Switching Power Transformer

1.Product Description

The Low-loss New Energy Flyback Transformer is a high-efficiency, high-frequency switching power transformer designed for modern energy applications. It features advanced core materials and optimized winding techniques to minimize energy loss, improve thermal performance, and enhance power density. Ideal for renewable energy systems, EV charging, and industrial power supplies, this transformer ensures stable voltage conversion, reduced electromagnetic interference (EMI), and reliable operation in demanding environments. Its compact design and high-frequency capability (typically 20kHz-500kHz) make it a key component for efficient, lightweight, and eco-friendly power solutions.

1. High Efficiency & Low Energy Loss – Utilizes advanced core materials (e.g., ferrite or nanocrystalline) and precision winding techniques to minimize eddy current and hysteresis losses, improving overall energy conversion efficiency.

2. High-Frequency Operation (20kHz-500kHz+) – Optimized for high-frequency switching power supplies, enabling compact, lightweight designs while maintaining stable performance in applications like solar inverters and EV chargers.

3. Excellent Thermal Management – Engineered with low-resistance windings and optimized core structures to reduce heat generation, ensuring reliable operation even under continuous high-power conditions.

4. Low Electromagnetic Interference (EMI) – Features layered shielding and tight winding configurations to suppress noise, meeting stringent EMC standards for sensitive electronic systems.

5. Durable & Reliable for Harsh Environments – Built with high-quality insulation materials and robust construction to withstand voltage spikes, temperature fluctuations, and mechanical stress, ensuring long-term stability in industrial and renewable energy applications.
